CNC Machining for Semiconductor Equipment: The Hidden Backbone of Chip Manufacturing
When people think about the semiconductor industry, they often picture silicon wafers, photolithography machines, cleanrooms, and industry leaders such as ASML, Applied Materials, and Lam Research.

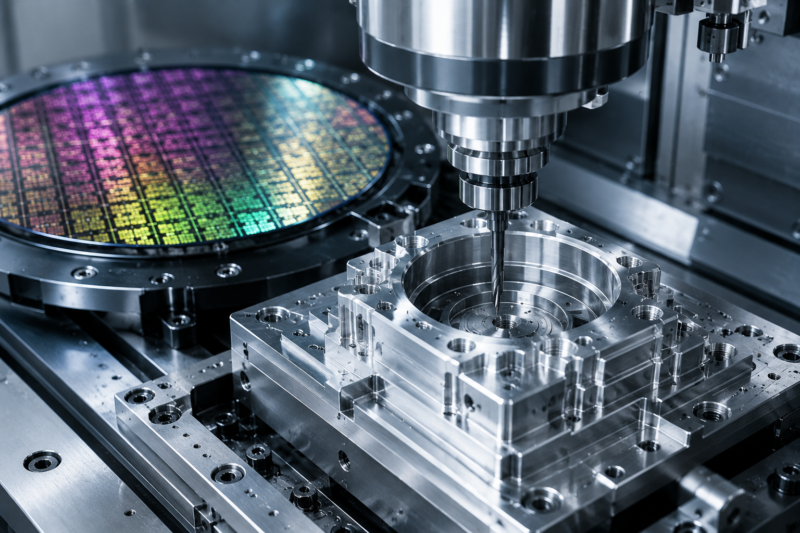

But behind these advanced systems lies a critical yet often overlooked manufacturing technology: high-precision CNC machining (Computer Numerical Control machining).
From vacuum chambers and electrostatic chuck housings to wafer handling robotic arms and gas distribution manifolds, thousands of essential components in semiconductor equipment are manufactured through precision CNC machining.
It is no exaggeration to say that without precision machining, modern chip manufacturing would not be possible.
Why Semiconductor Equipment Requires Exceptional Precision
Semiconductor fabrication involves processes such as:
- Photolithography
- Plasma etching
- Chemical vapor deposition (CVD)
- Physical vapor deposition (PVD)
- Chemical mechanical polishing (CMP)
- Wafer inspection and testing
These processes are carried out in tightly controlled environments where even microscopic contamination can cause costly defects.
As a result, the machined components used inside semiconductor equipment must meet demanding requirements:
- Tolerances as tight as ±0.002 mm or better
- Surface roughness down to Ra 0.2 μm or lower
- Excellent dimensional stability
- Ultra-high vacuum (UHV) compatibility
- Low particle generation
- Chemical and plasma resistance
Typical CNC-Machined Semiconductor Components
Vacuum Chambers
Precision-machined aluminum or stainless steel chambers form the core structure of etching and deposition systems.
Electrostatic Chuck (ESC) Housings
Critical structures that support ceramic ESC assemblies used to hold wafers during processing.
Gas Distribution Plates
Complex parts containing hundreds of micro-holes to ensure uniform gas flow.
Wafer Handling Arms
Lightweight, highly accurate components used in robotic transfer systems.
Cooling Plates
Machined plates with internal channels for thermal management.
Optical and Sensor Mounts
Used in inspection systems and metrology equipment.
RF Shielding and Matching Components
Precision parts used in plasma generation systems.
Common Materials Used in Semiconductor CNC Machining
Aluminum 6061-T6 and 6082
Widely used due to machinability, low weight, and anodizing compatibility.
Aluminum 7075
Chosen when higher mechanical strength is required.
Stainless Steel 316L
Offers excellent corrosion resistance and vacuum performance.
Titanium
Used in chemically aggressive environments.
PEEK and Engineering Plastics
Suitable for electrical insulation and lightweight applications.
Ceramics and Special Alloys
Used in high-temperature and plasma-intensive processes.
Surface Treatments for Semiconductor Parts
Post-processing is as important as machining itself.
Common finishes include:
- Hard anodizing
- PTFE impregnation
- Electropolishing
- Passivation
- Nickel plating
- Bead blasting
- Precision cleaning
- Cleanroom packaging
Proper finishing improves wear resistance, corrosion resistance, and contamination control.
The Importance of Cleanliness and Particle Control
A semiconductor component is not truly finished when machining ends.
Residual particles, cutting fluids, and burrs can all compromise yield.
Professional semiconductor machining suppliers typically provide:
- Deburring under magnification
- Ultrasonic cleaning
- DI water rinsing
- Vacuum or cleanroom packaging
- Full inspection reports
This level of process control is essential for equipment manufacturers.
CNC Machining Applications Across Semiconductor Equipment
Front-End Equipment
Used in lithography, deposition, etching, and cleaning tools.
Back-End Equipment
Applied in dicing, wire bonding, and packaging systems.
Test and Inspection Systems
Supports optical mounts, positioning stages, and fixtures.
Automation Modules
Includes robotic arms, grippers, and frame structures.
Manufacturing Challenges in Semiconductor Components
Tight Tolerance Requirements
Many features require micron-level accuracy.
Thin-Wall Structures
Vacuum parts often contain large cavities and delicate sections.
Complex Geometry
5-axis machining is frequently necessary.
High Surface Quality Standards
Parts may need mirror-like finishes and zero burrs.
Material Stability
Stress relief and process control are crucial.
How CNC Suppliers Support Semiconductor OEMs
Semiconductor equipment manufacturers look for suppliers who can provide:
- DFM support
- Rapid prototyping
- 5-axis CNC machining
- Precision finishing
- Assembly services
- Strict quality documentation
- NDA protection
- Stable long-term production
The ability to move from prototype to low-volume and production quantities is highly valued.
Why Many Semiconductor Companies Source CNC Parts from China
China has become a strategic manufacturing partner for semiconductor OEMs because of:
- Competitive pricing
- Advanced 3-axis and 5-axis machining centers
- Experienced engineering teams
- Complete surface finishing capabilities
- Faster prototype turnaround
- Scalable production capacity
For qualified suppliers, China offers excellent cost-to-quality performance.
Future Trends in Semiconductor CNC Machining
As chip geometries continue to shrink and equipment becomes more complex, CNC machining requirements will grow more demanding.
Future trends include:
- Tighter tolerances
- More integrated assemblies
- Advanced material machining
- Improved cleanroom processes
- Digital quality traceability
Precision machining will remain a foundational capability for next-generation semiconductor equipment.
Conclusion
CNC machining does not manufacture the chips directly, but it creates the highly precise hardware that makes semiconductor fabrication possible.
Every vacuum chamber, wafer robot, gas manifold, and fixture depends on machining accuracy, surface integrity, and cleanliness.
For semiconductor equipment manufacturers, choosing the right CNC machining partner is critical to achieving performance, reliability, and yield.
